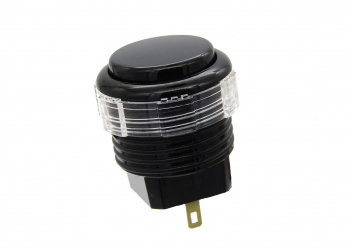

Crown / Samducksa SDB-202 24mm Cherry Screw In Button - Black

Crown / Samducksa SDB-202 24mm Cherry Screw In Button - Black

The SBD 202 line of buttons by Samducksa (formerly Crown) is an improvement on their 201 line by replacing the Futaba switch with the Cherry MX Silver switch, allowing for higher speed play on both arcade cabinets and fight sticks.

These screw-in pushbuttons can be used on metal control panels, or plastic and wood up to 10mm (3/8in) thick. The Cherry MX Silver switch is preinstalled and has .110" (2.8mm) male spade connectors.

Button Specs

• Black plunger with Black bezel
• Samducksa Part # SDB-202-24-K
• Built in switch has 2.8mm/.110in connectors
• Screw-in to 24mm diameter holes, max 10mm panel thickness

Switch Specs

• Cherry MX Silver
• Operating Force: 45g
• Actuation Point: 1.2mm
• Total Travel: 3.4mm
• Silent (no audible click like a microswitch)
• Linear (same pressure all the way down, unlike the extra resistance to engage a microswitch)

Options

• Wires with .110" Female Connectors
