Ultimarc UltraStik 360 Button/Encoder Harness
Average rating:
| Read all reviewsSKU UltraStik-Harness
Price $8.50
- More Details
- Reviews
Ultimarc UltraStik 360 Button/Encoder Harness

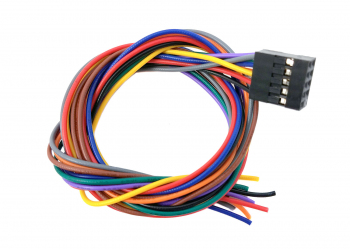

9 wire harness to connect buttons to an UltraStik 360 joystick or can be used for as output of the joystick data if desired.The connections for the 10-pin header are as below:
| Pin | Wire | Input Mode | Output Mode |
| 2 | Black | COM Connect to COM terminals on all buttons | GND. Connect to I-PAC if required |
| 3 | Brown | Button 1 NO | not used |
| 4 | Red | Button 2 NO | Power (5 volts) |
| 5 | Orange | Button 3 NO | Right Digital. Connect to I-PAC if required |
| 6 | Yellow | Button 4 NO | Left Digital. Connect to I-PAC if required |
| 7 | Green | Button 5 NO | Up Digital. Connect to I-PAC if required |
| 8 | Blue | Button 6 NO | Down Digital. Connect to I-PAC if required |
| 9 | Violet | Button 7 NO | Raw analog. Requires special firmware |
| 10 | Grey | Button 8 NO | Raw analog. Requires special firmware |
